Matki Bespoke Showering

Luxury in the bathroom is no longer limited to standard shapes and sizes. Through EauZone Plus Bespoke, Matki offers countless possibilities for fitting elegant showering solutions in even the most challenging of spaces. Whether you are working on installing a Shower Enclosure in a loft conversion, want to increase Shower Enclosure height or would like to fit a Shower Enclosure over a dwarf wall or bath, Matki can work with you to plan a design that is tailored to your exact requirements and preferences. All EauZone Plus units are available to order in a range of special metallic finishes and many can be designed with EauZone Plus Ultra Bespoke minimal or recessed framing and thresholds for a purely frameless appearance. There are also a number of striking glass finishes available including Low-Iron, Bronze Tinted, Ultra Black and Satin Frosted.

An efficient and hassle-free Measure and Installation offering is provided by Matki Installations; our own expert fitting team backed up by our specialist draughtspeople. This service should be used for all frameless, recessed channel and minimal framed units and is optional for standard setups in EauZone Plus and other Matki collections.

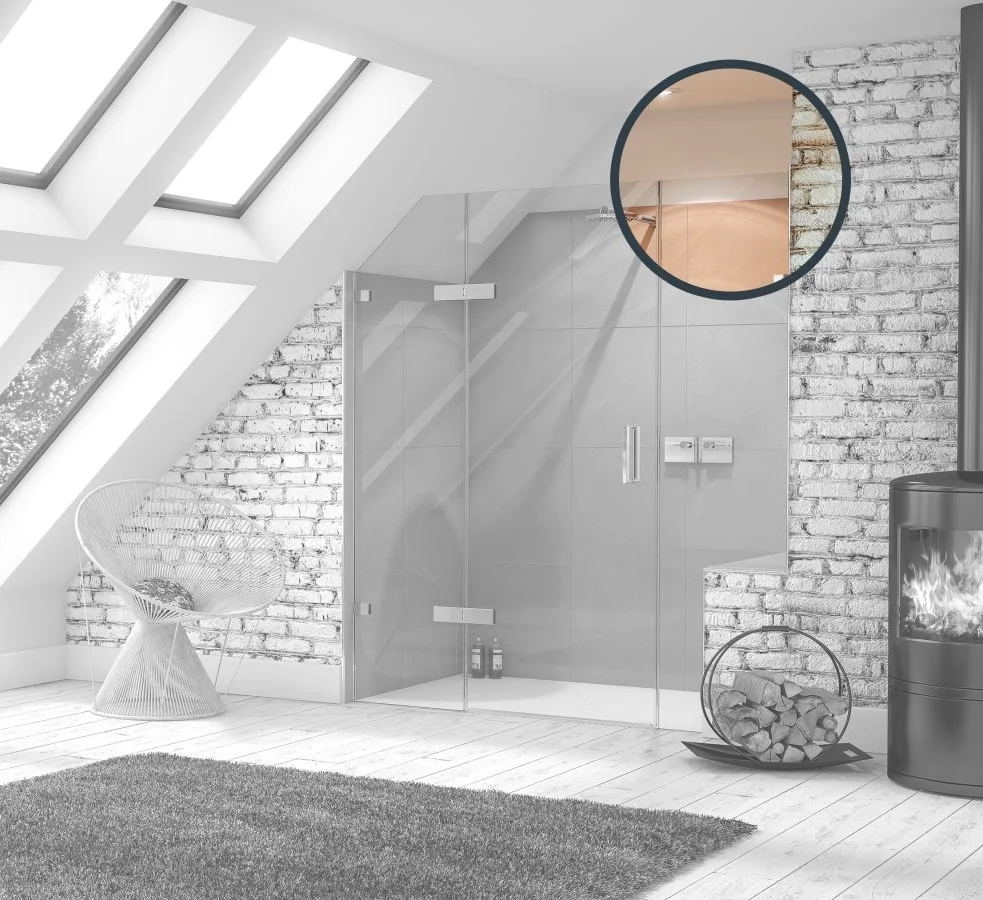

Increased Height

With Matki Bespoke, increased height doors and panels can be made to reach the ceiling or to create higher, more impressive bespoke versions of standard EauZone Plus Shower Enclosures, Wet Room Panels and Bath Screens.

Additional hinges and brackets may be required dependent on setup and height desired.

Matki-EauZone-Plus-Ultra-Bespoke-Increased-Height-1600x900 Waterloo Bathrooms Dublin.jpg
Matki-EauZone-Plus-Ultra-Bespoke-Dwarf-Wall-1600x900 Waterloo Bathrooms Dublin.jpg

Dwarf Wall

Bespoke glass with cut-outs to suit dwarf walls is available with a number of framed options as shown below or for a more minimalist look is achievable with minimal frames, recessed channels and sometimes with no frames at all.





Matki-EauZone-Plus-Bespoke-Dwarf-Wall-Frame-with-90-degree-edge-connector-1500x1500 Waterloo Bathrooms Dublin.jpg

Dwarf Wall Frame With 90° Off-Set Edge Connector



MATERIALS: 10mm Safety Glass with Aluminium Frames joined with an off-set Brass frame connector.

DESCRIPTION:  The off-set Brass frame connector is used to form the joint between frame sections of the Side Panel and Inline Panel on EPIC or EPWC models. This allows for a dwarf wall to come out in line with the front of the enclosure.

DIMENSION:  Frame width 20mm. Frame height 22mm. Brass frame connector length 44mm as pictured or 75mm to allow for a narrow shelf on the top of the dwarf wall.

Matki-EauZone-Plus-Bespoke-Dwarf-Wall-Frame-with-90-degree-connectors-840x800 Waterloo Bathrooms Dublin.jpg

Dwarf Wall Frame With 90° Frame Connecter



MATERIALS: 10mm Safety Glass with Aluminium frames joined by a Brass frame connector

DESCRIPTION: Smoothly finished Brass frame connector for a distinct and precise 90° joint between Aluminium frame sections.

DIMENSION:  Frame width 20mm, Frame height 22mm. Minimal width of vertical ‘leg’ of glass is 150mm.

Dwarf Wall Frame, 90° Frame Connector & Corner Connectors



MATERIALS: Aluminium frame with Brass frame connector

DESCRIPTION: 10mm solid Safety Glass with 22mm Aluminium frames joined by vertical and horizontal Brass frame connector.

DIMENSION: Bespoke dimensions of frame to suit your bathroom

Matki-EauZone-Plus-Bespoke-Dwarf-Wall-Framed-with-mitred-edge-1500x1500 Waterloo Bathrooms Dublin.jpg

Dwarf Wall with                  Mitred Corner



MATERIALS: 10mm solid Safety Glass with 22mm Aluminium frame.

DESCRIPTION:  A mitred corner is cut into the frames to form a neat joint between horizontal and vertical frames around a dwarf wall.

DIMENSION:  Frame width 20mm, frame height 22mm. Minimal width of vertical ‘leg’ of glass is 150mm.

Matki-EauZone-Plus-Ultra-Bespoke-Angled-Glass-Cut-1600x900 Waterloo Bathrooms Dublin.jpg

Angled Cut

Precise angled glass is made to measure for sloping ceilings and angled walls. A choice of framed and frameless solutions is available for the angled sections.

Matki-EauZone-Plus-Bespoke-Framed-Angled-Cut Waterloo Bathrooms Dublin.jpg

Frameless Angled Cut



MATERIALS:  10mm Safety Glass and wall bracket if required

DIMENSIONS:  Gap of approximately 10mm between glass edge and wall.

Framed Angled Cut

MATERIALS:  10mm solid Safety Glass with Aluminium frame

DIMENSIONS:  Available with 28mm wide frame, 11mm wide frame and recessed channels for angled cut.

Matki-EauZone-Plus-Bespoke-Frameless-Angled-Cut Waterloo Bathrooms Dublin.jpg
Matki-EauZone-Plus-Ultra-Bespoke-Wall-Frames-1600x900 Waterloo Bathrooms Dublin.jpg

Wall Frames

Matki-EauZone-Plus-Bespoke-Minimal-Wall-Frame-1500x1500 Waterloo Bathrooms Dublin.jpg

Standard Wall Frame



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: Allows for some adjustment in situations with out-of-plumb wall.

DIMENSION: 28mm

Matki-EauZone-Plus-Recessed-Wall-Frame-1500x1500 Waterloo Bathrooms Dublin.jpg

Minimal Wall Frame



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: Minimal wall mounted profile for an almost frameless look. Measure and Installation is required.

DIMENSION: Width = 11mm

Matki-EauZone-Plus-Bespoke-Standard-Wall-Frame-1500x1500 Waterloo Bathrooms Dublin.jpg

Recessed Wall Frame



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: Comprising a first fix section to be fitted prior to tiling and a neat cover profile. Recessed channels achieve a luxurious appearance whilst assuring the practicality and the water retention of a standard frame. Measure and Installation is required.

DIMENSION: Visible section, on inside and outside of shower area respectively, is 1.5mm deep and 7.5mm wide.

Matki-EauZone-Plus-Ultra-Bespoke-Threshold-Frames-1600x900 Waterloo Bathrooms Dublin.jpg

Threshold Frames


Matki-EauZone-Plus-Bespoke-Standard-Threshold Waterloo Bathrooms Dublin.jpg

Standard Threshold



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: The standard threshold used across the Matki EauZone Plus range is beautifully engineered to create a stylish barrier with excellent water retention.

DIMENSION:

Height = 20mm

Matki-EauZone-Plus-Frameless-Threshold Waterloo Bathrooms Dublin.jpg

Frameless Threshold



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: The standard threshold used across the Matki EauZone Plus range is beautifully engineered to create a stylish barrier with excellent water retention.

DIMENSION:

Height = 20mm

Matki-EauZone-Plus-Bespoke-Recessed-Floor-Channel-with-Flush-Infill Waterloo Bathrooms Dublin.jpg

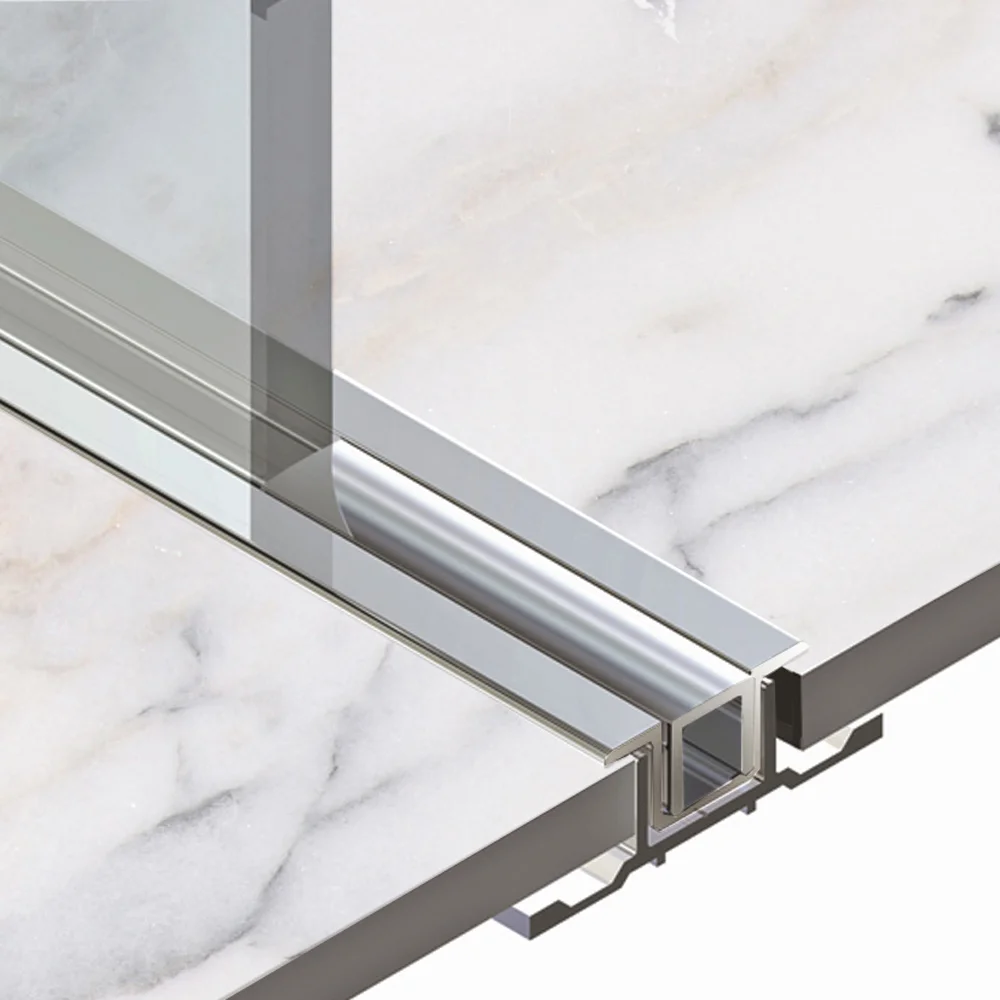

Recessed Floor Channel With Flush Chrome Infill



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: A recessed channel with a neat flush silver infill improves water retention while giving a flush entry to the Shower Enclosure. The infill interacts with a special door seal to give spray protection but does not assure complete water retention when water pools within the showering area.

Matki-EauZone-Plus-Bespoke-Recessed-Floor-Channel-with-Retro-Fit-Bar-1500x1500 Waterloo Bathrooms Dublin.jpg

Retro fit Threshold Bar For Tiled Entry



MATERIALS: Aluminium in a choice of finishes

DESCRIPTION: Bespoke length profile which can be retrofitted to a tiled threshold to improve water retention if required.

DIMENSION: Bespoke length

Matki-EauZone-Plus-Ultra-Bespoke-Hinges-1600x900 Waterloo Bathrooms Dublin.jpg
Matki-EauZone-Plus-Ultra-Bespoke-Wall-Brackets-1600x900 Waterloo Bathrooms Dublin.jpg

Hinges & Wall Brackets

We have adapted the EauZone Plus non-slip hinge to work with each of our Framing systems and for the exact opening required for your layout, whether that be outward or inward opening, panel-mounted or wall-mounted.

A variety of EauZone Plus wall brackets are available to support different bespoke glass sizes, shapes and setups.



Standard Panel Mounted Hinge



MATERIALS: Solid Brass patented non-slip hinge

DESCRIPTION:  Outward opening hinge for use with standard 28mm frame on standard or bespoke door glass.

DIMENSION:Width 249mm, height 58mm

Matki-EauZone-Plus-Bespoke-Inward-Opening-Panel-Mounted-Hinge-1024x1024 Waterloo Bathrooms Dublin.jpg

Panel Mounted Hinge – Inward Opening



MATERIALS: Solid Brass patented non-slip hinge

DESCRIPTION: Inward opening hinge to fit standard or bespoke glass.

DIMENSION: Width 250mm, Height 58mm

Matki-EauZone-Plus-Bespoke-Standard-Wall-Mounted-Hinge-1024x1024 Waterloo Bathrooms Dublin.jpg

Standard Wall Mounted Hinge



MATERIALS: Solid Brass patented non-slip hinge available in a choice of finishes.

DESCRIPTION:  Outward opening hinge for use with standard 28mm frame on standard or bespoke door glass.

DIMENSION: Width 137mm, height 58mm

Ultra Bespoke Wall Mounted Hinge – Outward Opening



MATERIALS: Solid Brass patented non-slip hinge, available in a choice of finishes.

DESCRIPTION: Outward opening hinge for use with Ultra Bespoke minimal and recessed frames. This hinge requires bespoke door glass and Measure and Installation.

DIMENSION: Width 137mm, height 58mm

Matki-EauZone-Plus-Bespoke-Wall-Mounted-Inward-Opening-Hinge-1024x1024 Waterloo Bathrooms Dublin.jpg

Ultra Bespoke Wall Mounted Hinge – Inward Opening



MATERIALS: Solid Brass patented non-slip hinge

DESCRIPTION: Inward opening hinge for use with Ultra Bespoke minimal and recessed frames. This hinge requires bespoke door glass and Measure and Installation.

DIMENSION: Width 138mm, height 58mm




Matki-EauZone-Plus-Bespoke-Standard-L-Shaped-Bracket-1500x1500 Waterloo Bathrooms Dublin.jpg

Standard L-Shaped Bracket



MATERIALS: Solid Brass Bracket available in a choice of finishes

DESCRIPTION: L-Shaped Bracket for securing the glass to the wall. Fitted on top of fixed panels for all frame types.

Wall Bracket for Standard Frames



MATERIALS: Solid Brass bracket, available in a choice of finishes

DESCRIPTION: This bracket is specifically for use with the 28mm standard frame where the standard L-Shaped Bracket cannot be used due to length or width restrictions or angled ceilings. Its footprint on the wall is no wider than the standard frame.

DIMENSION: 28mm wide frame. Bracket width 54mm, height 44mm. The wall bracket for 28mm frames requires bespoke glass.

Matki-EauZone-Plus-Bespoke-Wall-Frames-with-Recessed-Frames-1024x1024 Waterloo Bathrooms Dublin.jpg

Wall Bracket With 11mm Minimal Wall Frames



MATERIALS: Solid Brass Bracket available in a choice of finishes

DESCRIPTION: This bracket is specifically for use with the 11mm minimal frame where the standard L-Shaped Bracket cannot be used due to length or width restrictions or angled ceilings.

DIMENSION: Width (visible) 53mm

Wall Bracket With Recessed Frames



MATERIALS:  Solid Brass Bracket. Available in a choice of finishes.

DESCRIPTION:  This bracket is specifically for use with the recessed frame, where the standard L-Shaped Bracket cannot be used due to length or width restrictions or angled ceilings.

DIMENSION:  Width = 67.5mm.



Finishes

A range of special metallic finishes for all frames, brackets, handles and hinges are available in EauZone Plus. Special glass finishes can also be chosen for most products

Silver Frame

MATERIALS:  Aluminium frames for EauZone Plus Hinged, Quintesse, Bath Screens and Selected Wet Room Panels in Silver finish as standard.

DESCRIPTION:  Vertical and Horizontal frames in this finish

Nickel Frame

MATERIALS:  Aluminium frames for EauZone Plus Hinged, Quintesse, Bath Screens and Selected Wet Room Panels in Nickel finish for Polished and Brushed Nickel variants.

DESCRIPTION:  Vertical and Horizontal frames in this finish. The same Nickel finish frame is used for Polished and Brushed Nickel options.

Matki-EauZone-Plus-Bespoke-Gold-frame Waterloo Bathrooms Dublin.jpg

Gold Frame

MATERIALS:  Aluminium frames for EauZone Plus Hinged, Quintesse, Bath Screens and Selected Wet Room Panels in Gold finish for Gold and Brushed Gold variants.

DESCRIPTION:  Vertical and Horizontal frames in this finish. The same Gold finish frame is used for Gold and Brushed Gold options.


Finishes For EauZone Plus Hinged,Bath Screens and Selected Wet Room Panels

Available for Hinged, Quintesse, Bath Screens and Selected Wet Room Panels

  Polished Chrome

Polished Chrome

  Brushed Nickel

Brushed Nickel

  Polished Nickel

Polished Nickel

  Brushed Gold

Brushed Gold

  Polished Gold

Polished Gold


Finishes For EauZone Plus Slider, Curved And Selected Wet Room Panels

For Sliding configurations, Wet Room Panels, Bath Screens and Curved.



  Polished Chrome

Polished Chrome

  Polished Nickel

Polished Nickel

  Polished Gold

Polished Gold

  Brushed Steel

Brushed Steel


Special Glass Finishes

All EauZone Plus glass is 10mm or thicker. Special glass finishes are available on most models.

Accessories



Matki-EauZone-Plus-Bespoke-Linear-Towel-Rail-15-1600x900 Waterloo Bathrooms Dublin.jpg

Linear Towel Rail – LTR

Linear Towel Rail for doors with pull handle on inside in 400mm and 700mm lengths, or for fixed panels with outer rail only in 400mm, 700mm and 1000mm lengths. 1000mm variant has third centre fixing.

Matki-EauZone-Plus-Bespoke-Traditional-Towel-Rail-1024x576 Waterloo Bathrooms Dublin.jpg

Traditional Towel Rail – TTRDS

Double sided towel rail. Available in sizes up to 700mm.


Matki-EauZone-Plus-Bespoke-Curved-Towel-Rail-1600x900 Waterloo Bathrooms Dublin.jpg

Curved Towel Rail – CTRDS

Double-sided Towel Rail. Available in 700mm length only.





Matki-EauZone-Plus-Bespoke-Linear-Hardwood-Towel-Rail-3-1600x900 Waterloo Bathrooms Dublin.jpg

Linear Hardwood Towel Rail – LWT

Linear Towel Rail for doors with pull handle on inside in 400mm and 700mm lengths, or for fixed panels with outer rail only in 400mm, 700mm and 1000mm lengths. 1000mm variant has third centre fixing.
